Multiclean®
M4 Square - Smart seat with washing and drying functions
M3 Round - Smart seat with washing function at 37°C
discontinued product
REF: A804054001
Smart seat with washing and drying function. Round shape. Needs conventional water and power supply.
Air dryer temperature levels: 40º, 50º, 60º
Cleaning function
Coanda Effect dryer function
Control panel: Fixed
Descaling
Dryer intensity control
Fixing kit: Included
Front wash with Multi-stream
Hot water cleaning
LED light modes: Night mode, Standard, Standard with night light
Nozzle positions: 0
Number of nozzles: 1
Personalised programmes
Power Supply (Hz): 50
Power Supply (V): 220
Power Wattage (Watts): 1650
Protection class (IPX4)
Quick release
Removable nozzle

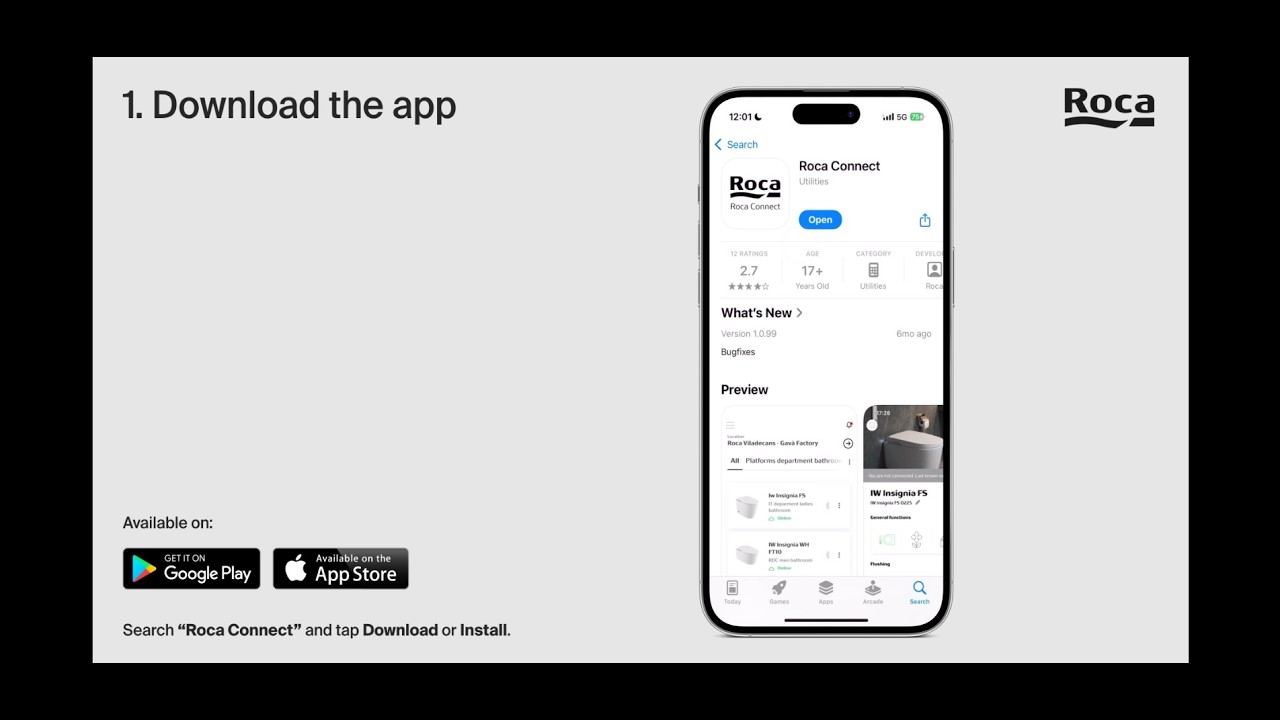

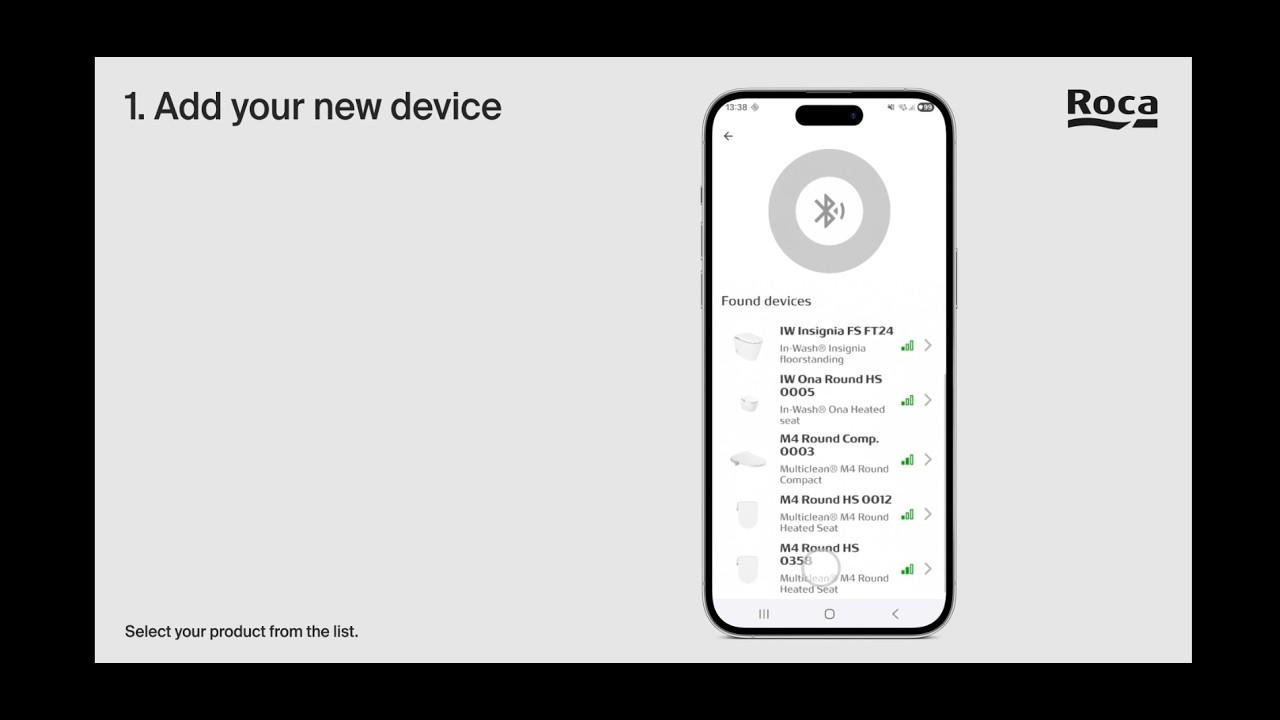

Roca Connect app
Self-cleaning nozzle with UV light
Shape: Round
Smart Toilet type: Multiclean ®
Stand-by mode
Water inlet position: Side right
Water pressure (Mpa): 0.05 - 0.9
Water temperature levels: 35º, 37º, 39º
Weight (Kg): 6
Ona
360 x 675 x 420
360 x 530 x 290
360 x 530 x 465
The Gap
370 x 790
355 x 540 x 440
355 x 540 x 400
355 x 440
Carmen
370 x 670 x 770
370 x 560 x 400
Meridian
385 x 750 x 830
360 x 560 x 400
360 x 435
Dama Retro
405 x 685 x 745
Debba
350 x 655 x 760
355 x 655 x 760
355 x 540 x 345
Victoria
355 x 540 x 385
Access
380 x 670 x 865
380 x 670 x 815
360 x 700
Download the CAD (2D, 3D) files of this product in different formats.
2D
Top view
Front view
Side view
3D
The most practical solution for private hygiene, combining toilet and bidet into one single product with many added functions. A new generation of advanced solutions where technology is serving the most demanding requirements.
